Everything to do with an RC Link for RC located in the one place.
RC (Radio Control) link, also known as an RC system or radio transmitter-receiver system, is a fundamental component of remotely controlling model vehicles and devices, including RC cars, boats, airplanes, helicopters, and quadcopters (drones). It provides the means for the operator to send control commands to the vehicle and receive feedback, enabling precise and real-time control. Here's an overview of the key components and functions of an RC link:

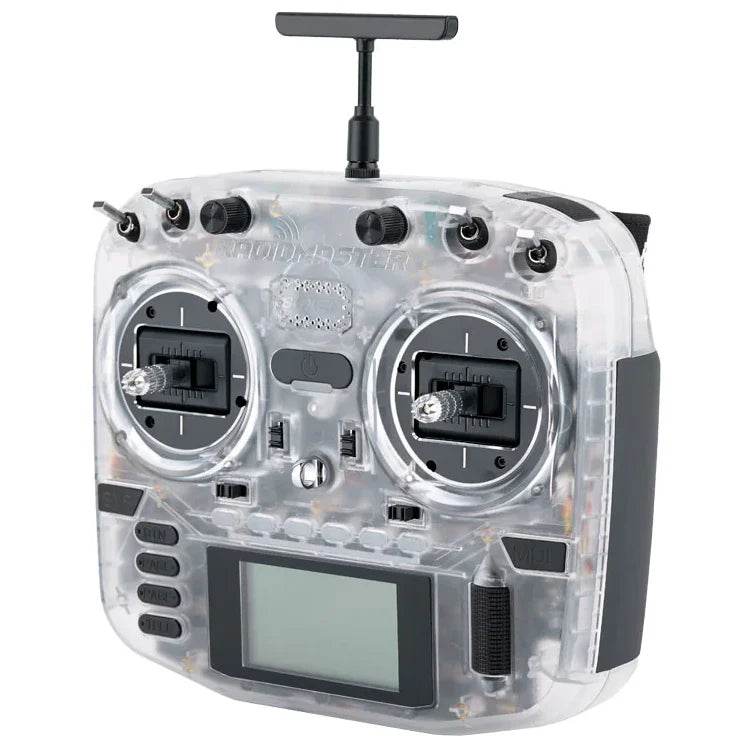

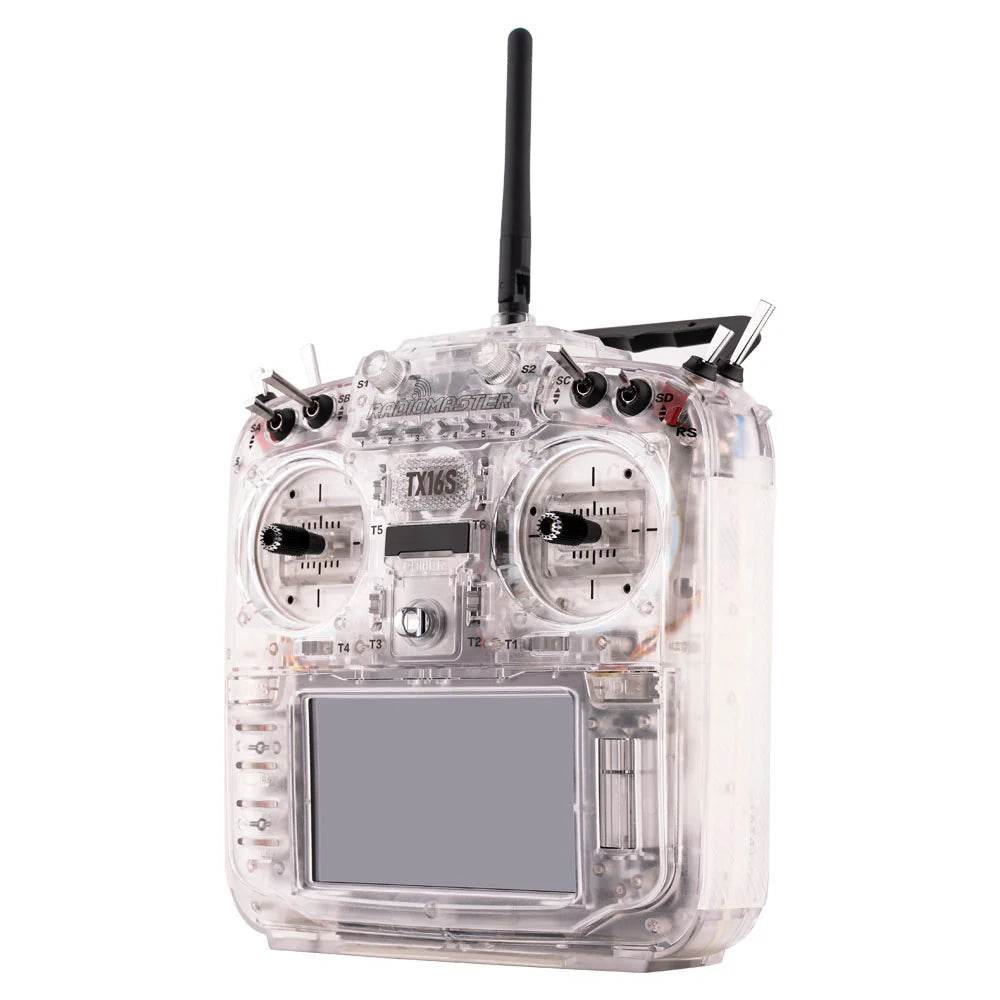

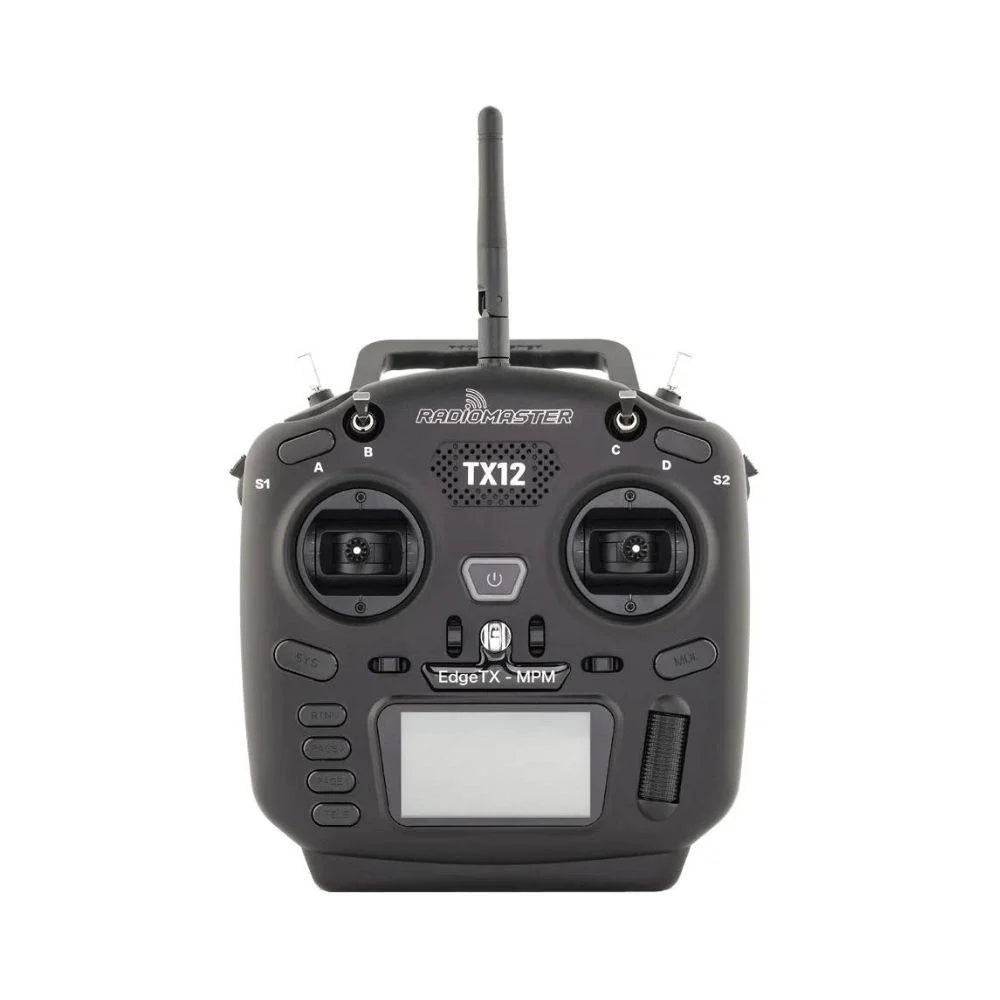

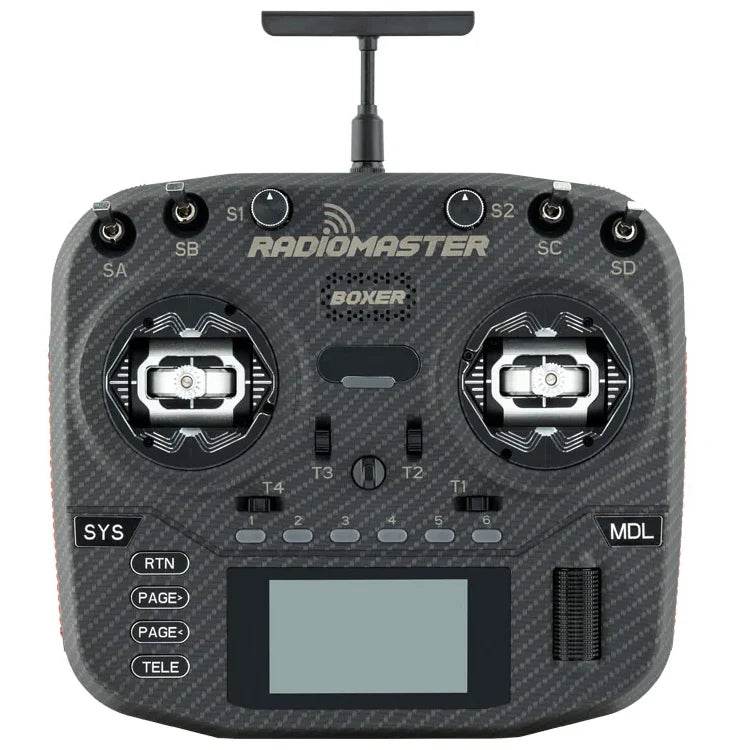

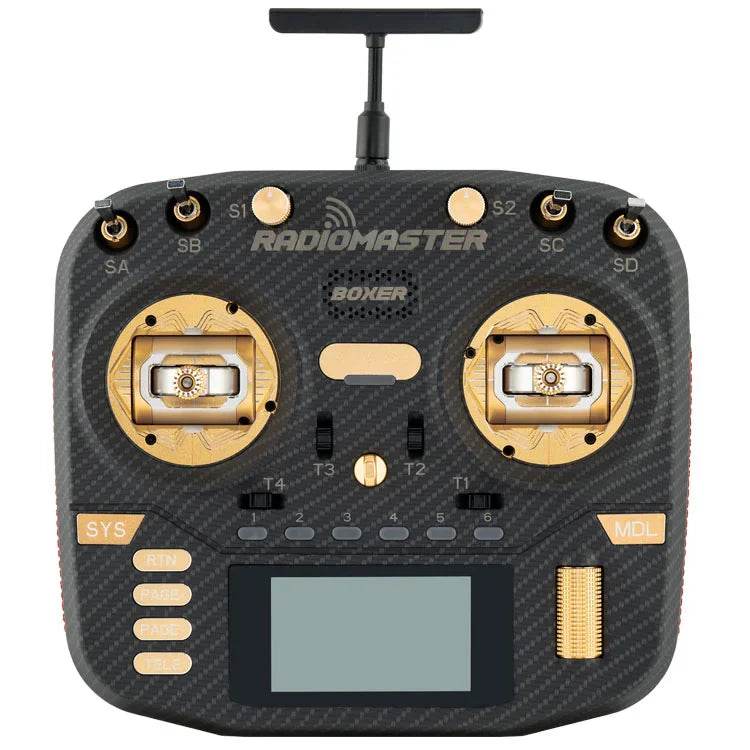

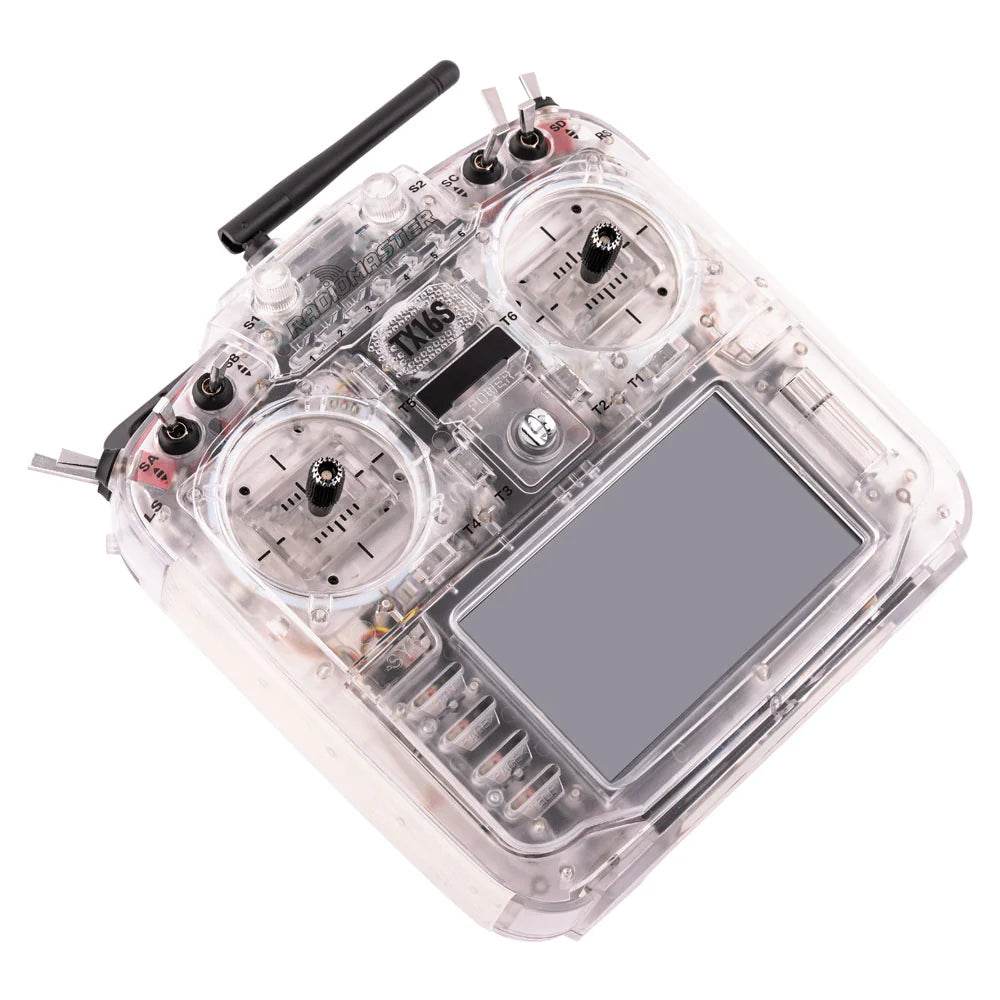

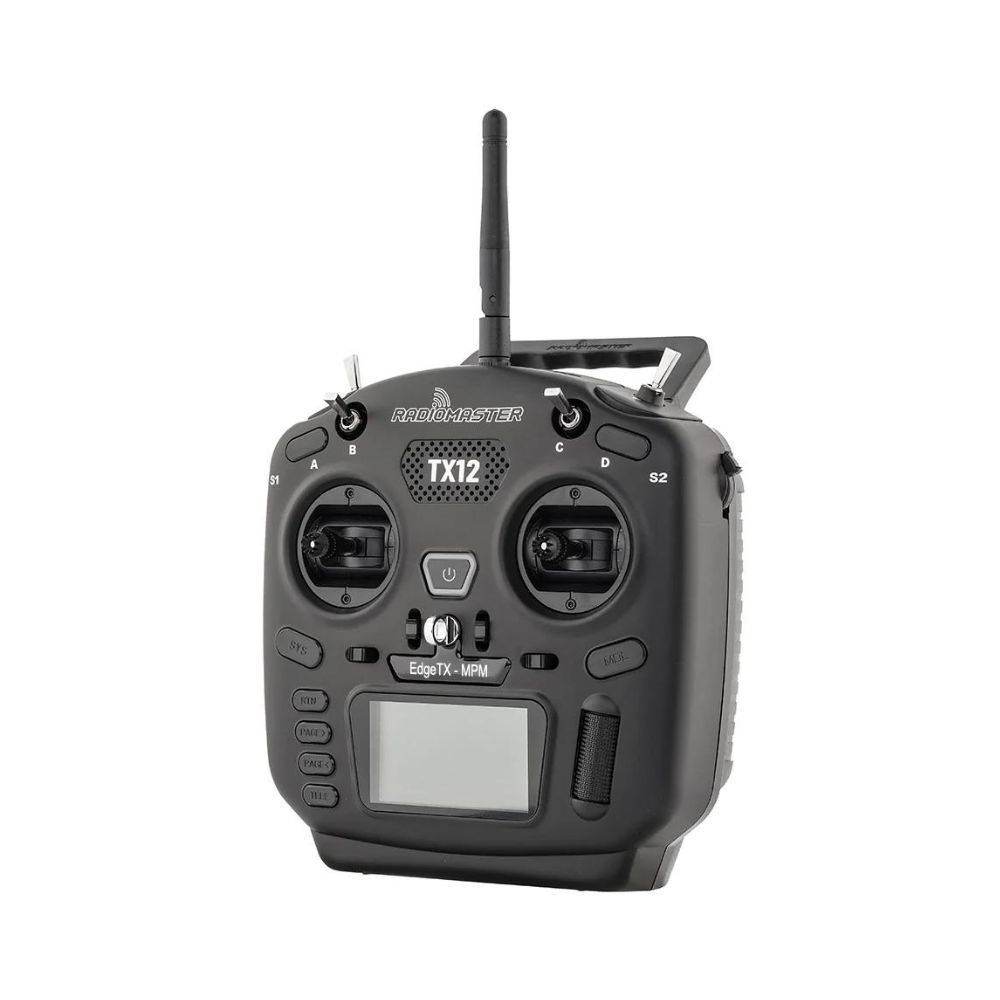

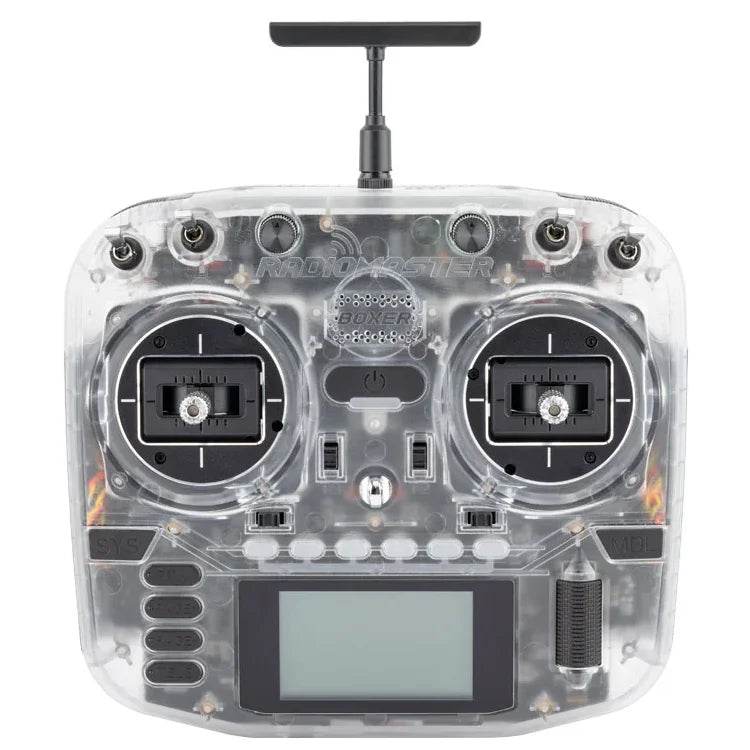

Transmitter (Tx):
The transmitter is the handheld controller held by the operator. It typically includes:
Control Sticks: These are used to manipulate the vehicle's control surfaces or functions, such as throttle, steering, pitch, roll, or yaw.
Switches and Dials: These provide additional control options, such as changing flight modes or activating features like lights or cameras.
Frequency Modulation (FM): Traditional RC transmitters often use FM modulation to transmit control signals, with each stick controlling a specific function or channel.
Receiver (Rx):

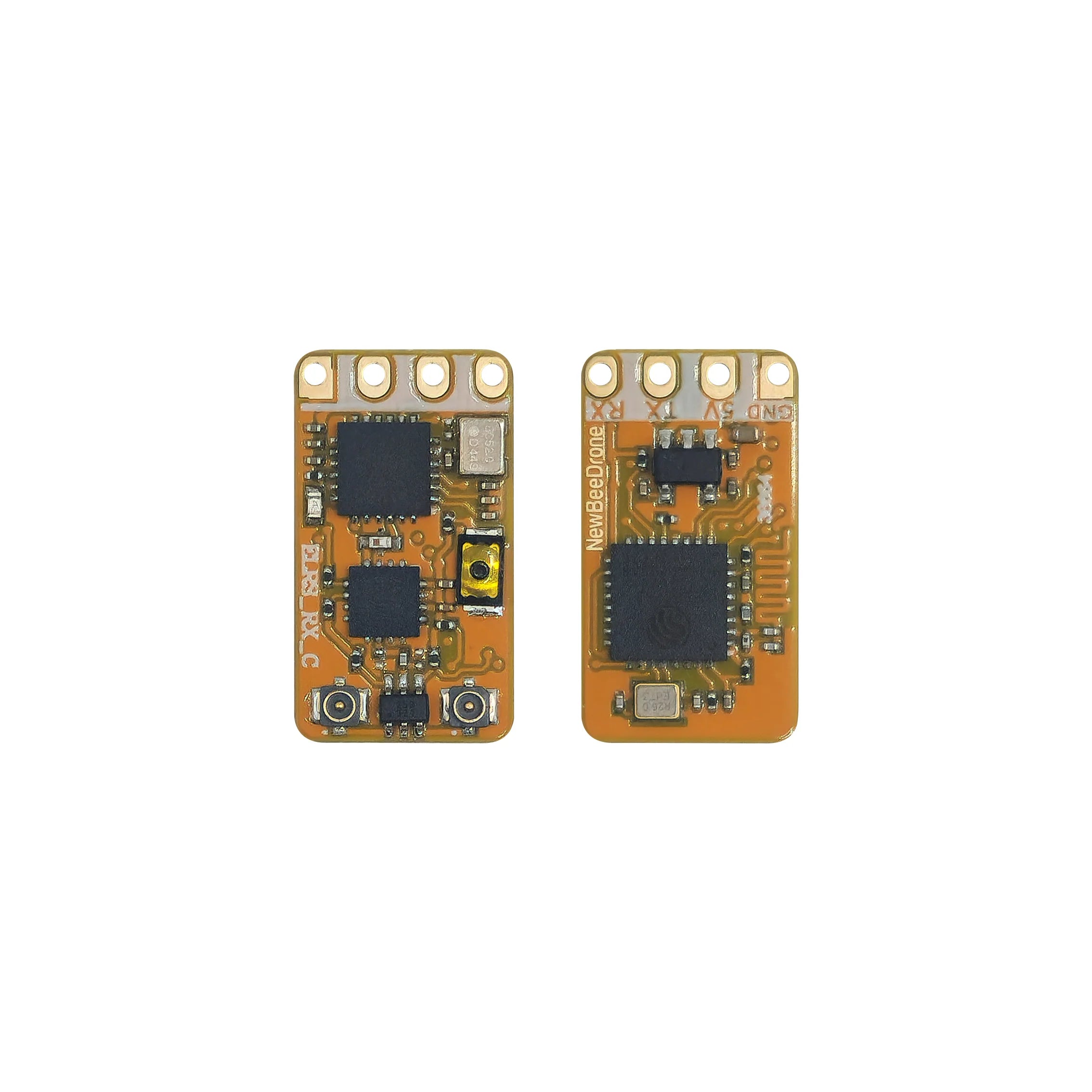

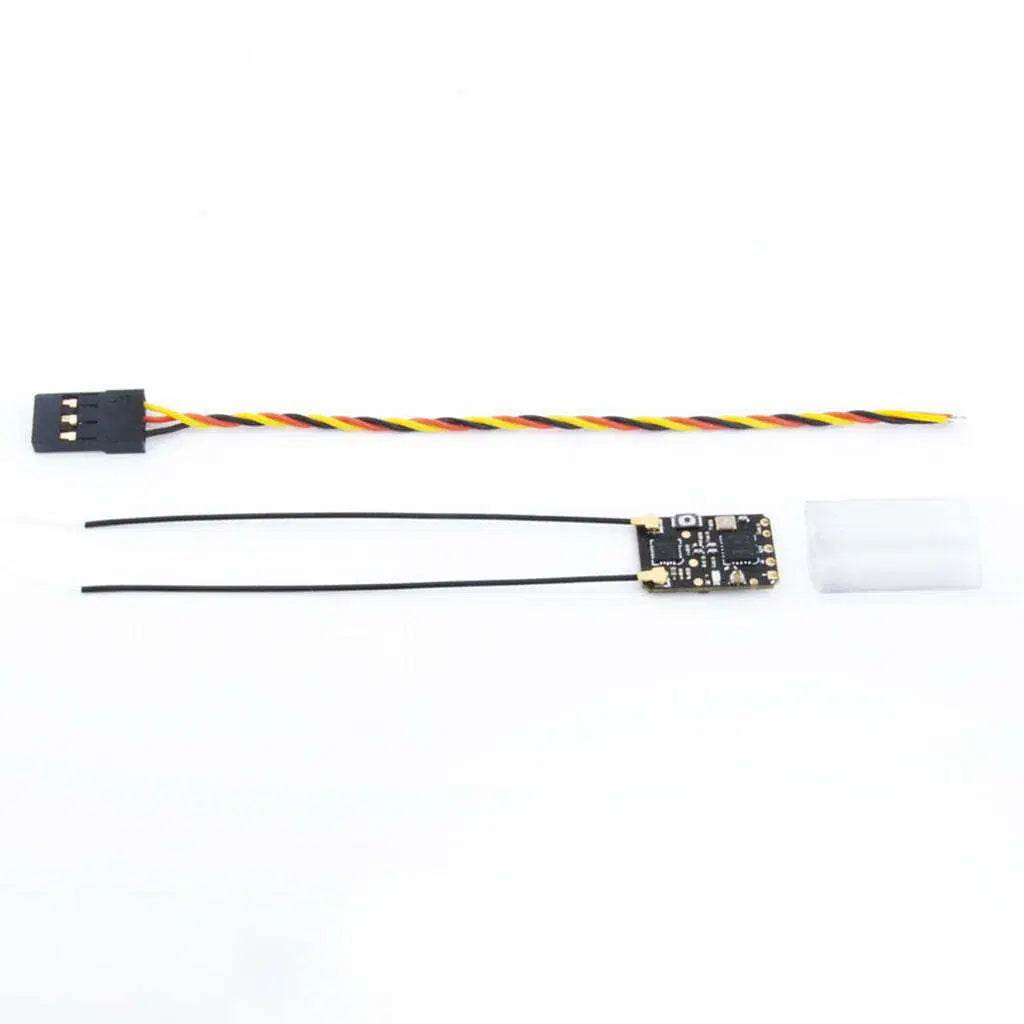

The receiver is installed on the vehicle or device being controlled. It receives the signals sent by the transmitter and translates them into control commands for the vehicle's onboard components.
Channels: Receivers come in different channel configurations, such as 2-channel, 4-channel, 6-channel, or more. Each channel corresponds to a specific function or control surface on the vehicle.
Binding: To establish a connection between the transmitter and receiver, a process called binding is performed. This pairs the receiver with the transmitter to ensure that only your transmitter can control your specific vehicle.
Frequency and Signal Type:
RC links can operate on various frequencies, including 2.4GHz and 72MHz. Modern RC systems commonly use 2.4GHz due to its reliability and reduced interference. Some RC systems also employ spread spectrum technology to further enhance signal reliability.
The type of signal can vary as well, including analog or digital encoding. Digital systems offer more precise control and can provide telemetry data feedback.
Telemetry:
Some advanced RC systems feature telemetry capabilities. Telemetry allows the operator to receive real-time data from the vehicle, such as battery voltage, GPS coordinates, altitude, and speed. This data helps the operator monitor the vehicle's status during operation.
Range:
The range of an RC link depends on factors like frequency, power output, and antenna design. While most RC systems offer sufficient range for typical recreational use, long-range systems are available for specialized applications, such as FPV (First-Person View) drone racing.
Safety Features:
Many RC systems incorporate safety features like fail-safes, which ensure that the vehicle enters a predetermined safe mode or returns to home if the RC signal is lost or the vehicle goes out of range.
Compatibility:
RC systems are designed for specific types of vehicles (e.g., airplanes, helicopters, or cars) and may not be interchangeable. Compatibility between the transmitter and receiver is crucial to ensure proper control.
Regulations:
RC operators should be aware of local regulations and guidelines for radio frequency use, especially when using powerful systems or operating in crowded areas. Unauthorized use of certain frequencies can lead to interference with other devices.
In summary, an RC link is the communication system that enables remote control of model vehicles and devices. It consists of a transmitter held by the operator and a receiver installed on the vehicle, allowing for precise control over various functions. The choice of RC system depends on the type of vehicle and the specific needs of the operator, from basic hobbyist use to professional applications.
