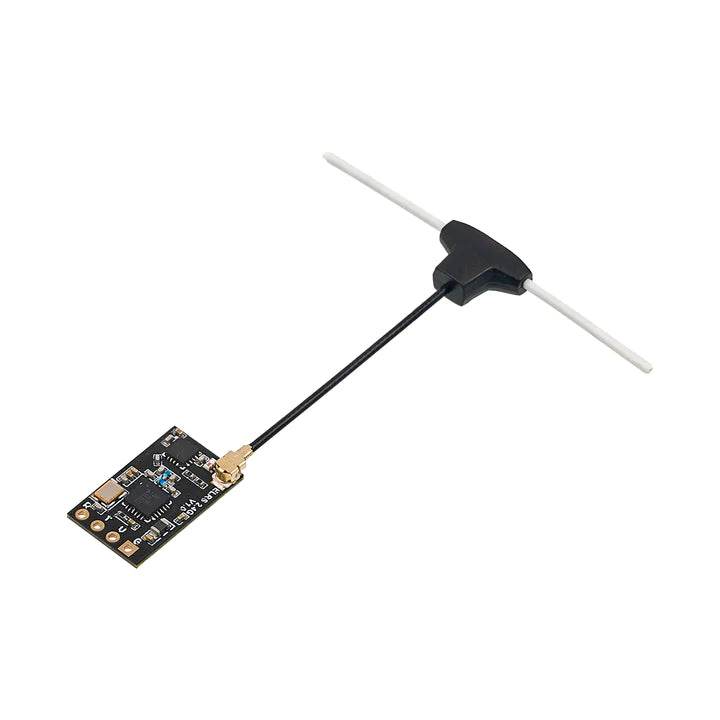

Drone receivers, often referred to as "RC receivers" or simply "receivers," are critical components in remote-controlled (RC) drones and other unmanned aerial vehicles (UAVs). These devices play a crucial role in receiving and processing signals from the drone pilot's remote control transmitter, allowing for real-time control of the drone's flight. Here's an overview of drone receivers and their key features:
Function and Importance:
Signal Reception: The primary function of a drone receiver is to receive radio signals transmitted by the pilot's remote control transmitter. These signals include commands for controlling the drone's throttle, pitch, yaw, and roll, as well as additional functions such as camera tilt, flight mode selection, and more.
Decoding and Processing: Upon receiving the signals, the receiver decodes and processes them to translate the pilot's input into specific actions for the drone's flight controller. For example, if the pilot pushes the throttle stick forward, the receiver interprets this as a command to increase the drone's altitude.
Communication Protocol: Drone receivers typically operate using specific communication protocols, such as PWM (Pulse Width Modulation), PPM (Pulse Position Modulation), or S.Bus. The choice of protocol often depends on the compatibility with the transmitter and the specific drone system.

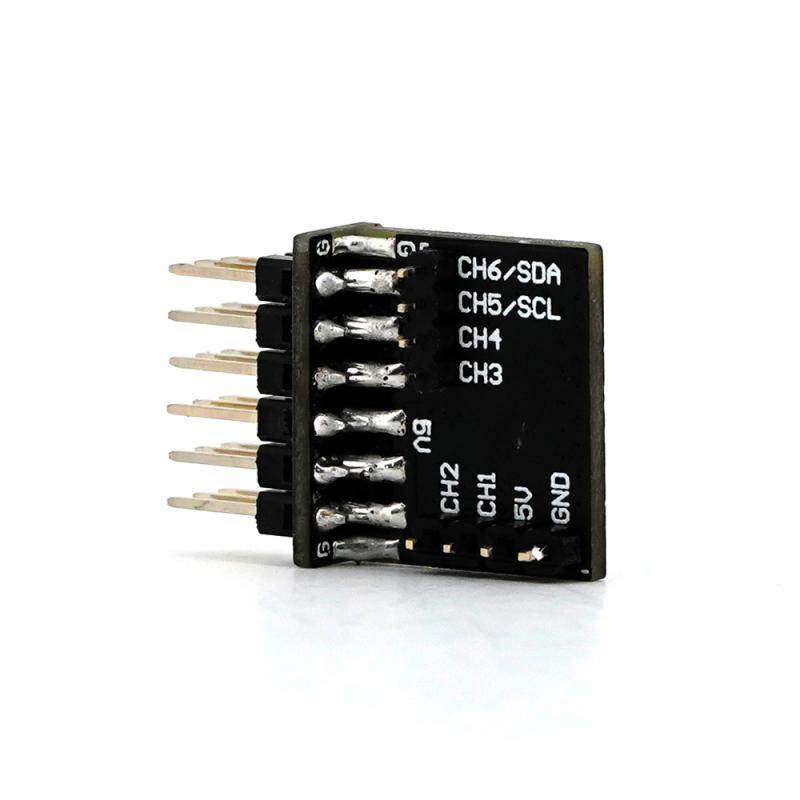

Channel Support: Receivers come with a certain number of channels, which determine the number of functions or controls that can be managed by the pilot. Common receiver channels include throttle, aileron, elevator, rudder, and auxiliary channels for additional functions.
Types of Drone Receivers:
Integrated Receivers: Many drones come with integrated receivers that are specifically designed to work with the manufacturer's remote control transmitter. These integrated systems offer ease of setup and are often preconfigured for optimal performance.
External Receivers: Some drone enthusiasts prefer to use external receivers that are compatible with a wide range of transmitters. This allows for more customization and flexibility in choosing the transmitter-receiver combination.
Binding and Pairing:
To establish a connection between the transmitter and the receiver, a process called "binding" or "pairing" is typically required. During this process, the transmitter and receiver are synchronized to operate on the same communication frequency and protocol.
Range and Reliability:
The range of a drone receiver largely depends on the transmitter's power output, the receiver's sensitivity, and the environment. Receivers can offer various ranges, from a few hundred meters to several kilometers in long-range applications. Maintaining a reliable and strong signal connection is essential for safe drone operation.
Compatibility:
It's crucial to ensure that the receiver is compatible with both the drone's flight controller and the pilot's transmitter. Incompatibility can lead to communication issues and affect the drone's performance.
Safety and Redundancy:
In critical applications like drone racing or commercial drone operations, redundant receiver systems may be used to ensure continued control in the event of signal interference or receiver failure. This enhances safety and reduces the risk of flyaways.
In summary, drone receivers are essential components that enable remote control of unmanned aerial vehicles. They receive and process signals from the pilot's transmitter, translating them into commands for the drone's flight controller. The choice of receiver depends on factors such as compatibility, range requirements, and the specific needs of the drone operator.
