Key Features:
• 4K/120fps 1/1.3" CMOS Sensor
• Up to 15 km Video Transmission Range
• 15ms Ultra-low Latency
Overview

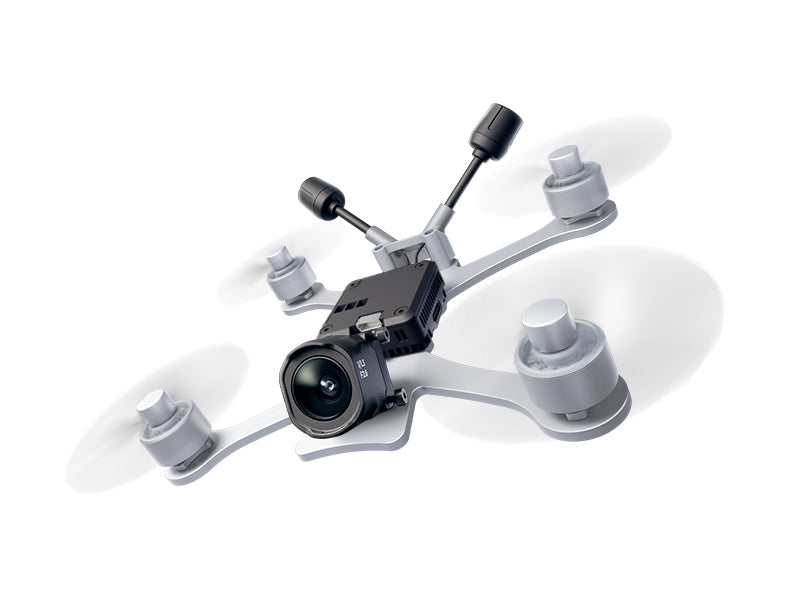

Unlock freedom in flight with the DJI O4 Air Unit Pro FPV Video Transmission System, suitable for airframes sized 3-inches and above.
Designed to deliver unparalleled performance for custom FPV drone builds, the O4 Air Unit Pro is straight business, supporting 4K/120fps video capture and full HD video transmission up to 15km via DJI O4 video transmission technology.
The O4 Air Unit Pro eliminates the need for an external action camera, keeping builds lightweight and aerodynamic. Enjoy a max video bitrate of 100 Mbps, Betaflight software support and seamless compatibility with DJI Goggles and FPV remote controllers.
Highlights
• 4K/120fps video recording with a 1/1.3" image sensor
• 15 km maximum video transmission range with DJI O4
• Racing mode with support for up to eight aircraft at a time
Air Unit (camera module excluded): Approx. 15.6 g
Air Unit (camera module included)：Approx. 32 g
Antenna: Approx. 2.1 g/pcs |
|
|
|
| Dimensions |
Operating Frequency |
5.170-5.250 GHz
5.725-5.850 GHz
Operating frequency allowed varies among countries and regions. Please refer to local laws and regulations for more information.
|
|
|
Transmitter Power (EIRP) |
5.1 GHz: <23 dBm (CE)
5.8 GHz:
<33 dBm (FCC)
<14 dBm (CE)
< 30 dBm (SRRC) |
|
|
Lowest Latency |
With DJI Goggles 3 and pick racing mode:
With 1080p/100fps video transmission quality, the latency is as low as 15 ms.
With DJI Goggles N3 and pick racing mode:
With 1080p/100fps video transmission quality, the latency is as low as 19 ms.
With DJI Goggles 2 or Goggles Integra：
With 1080p/100fps video transmission quality, the video transmission latency is less than 30 ms. Latency data represents the minimum latency during the screen refresh process of DJI Goggles.Tested in an outdoor open environment without interference. The video transmission latency data varies with different devices.
|
|
|
Max Video Transmission Range |
With DJI Goggles 3/DJI Goggles N3:
15 km (FCC),8 km (CE),8 km (SRRC)
Measured in an unobstructed outdoor environment free of interference. The above data shows the farthest communication range under various standards . The actual maximum communication range during flight is limited by the flight endurance of the aircraft. Always pay attention to RTH reminders in the app during your flight.
|
|
|
Live View Quality |
1080P@30/48/50/60/100fps |
|
|
Communication Bandwidth |
Max 60 MHz |
|
|
Antenna |
2 antennas, 2T2R |
|
|
Channels |
Supports auto mode
Supports manual mode:
With DJI Goggles 3 or DJI Goggles N3:
60 MHz: 1 channel; 40 MHz: 1 channels; 20 MHz: 3 channels; 10 MHz: 3 channel
With DJI Goggles 2 or Goggles Integra：
40 MHz: 1 channel; 20 MHz: 3 channels; 10 MHz: 3 channels |
|
|
Channels Info |
Image Sensor |
1/1.3-inch CMOS Sensor |
|
|
Lens |
FOV: 155°
The equivalent focal length: 12 mm
Aperture: f/2.8
Focus: 0.6 m to ∞ |
|
|
ISO Range |
100-25600 (Auto)
100-25600 (Manual) |
|
|
Video Resolution |
4K(4:3): 3840 x 2880@30/48/50/60fps
4K(16:9): 3840 x 2160@30/48/50/60/100/120fps
2.7K(4:3): 2888 x 2016@30/48/50/60fps
2.7K(16:9): 2688 x 1512@30/48/50/60/100/120fps
1080P(4:3): 1440 x 1080@30/48/50/60/100/120fps
1080P(16:9): 1920 x 1080@30/48/50/60/100/120fps |
|
|
Video Format |
MP4 |
|
|
Max Video Bitrate: |
130 Mbps |
|
|
Color Mode |
Normal Mode
D-Log M |
|
|
Camera FOV |
Standard
Wide-Angle
Ultra Wide-Angle |
|
|
EIS |
RockSteady 3.0+
Stabilization function off (supports Gyroflow)
When RockSteady is enabled, the shooting angle only supports standard.
|
