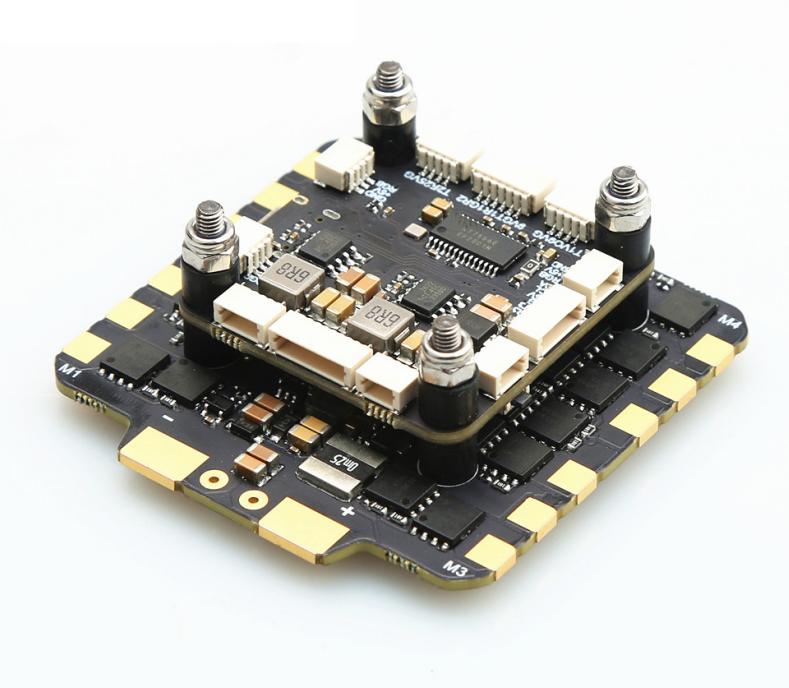

Hydra F722 + 100A Stack
F7 Flight Controller + 100A 4-in-1 ESC | 3–8S LiPo | Dual BEC | 36×36mm Mount
The Hydra F722 + 100A Stack is a robust, high-efficiency flight system designed for demanding freestyle and racing FPV drones. Featuring a powerful F7 processor, dual BEC outputs, and a reliable 100A 4-in-1 BLHeli_S ESC, this stack delivers the stability, configurability, and current-handling capacity needed for today’s high-thrust multirotor platforms.
Flight Controller (FC) – F722 Specs & Features:
-
Processor: STM32F722 MCU for high-speed data handling and smoother flight performance
-
Power Input: 3S–8S LiPo support
-
BEC Outputs: Dual BEC (5V @ 3A and 10V @ 2A) for powering peripherals like VTXs, cameras, and GPS
-
Blackbox Storage: 16MB onboard flash for extensive flight log recording
-
Mounting Dimensions: Standard 36×36mm (30.5×30.5mm hole spacing)
-
Design: High-end composite PCB construction for heat resistance and electrical stability
-
Noise Reduction: Layout optimized for reduced interference and easier maintenance
4-in-1 ESC Specs:
-
Continuous Current: 100A (per ESC)
-
Firmware: BLHeli_S for smooth throttle response and high reliability
-
Voltage Input: 3S–8S LiPo
-
Built-In Protection: Over-current, thermal, and signal loss protections to enhance durability and safety
-
Signal Support: DShot and PWM compatible
F722 F7 Flight Controller FC 3-8S Lipo 5V/10V
Dual BEC w/100A 4in1 BLheli_S ESC for RC FPV
Freestyle Racing Drone Accessories
Features:
1. The F722 is a 3-8S 36x36mm mini flight
controller with a 16MB Blackbox flash memory,
5V 10V dual BEC. Designed for easy
maintenance and low interference.
2. The PCB adopts high-end composite
