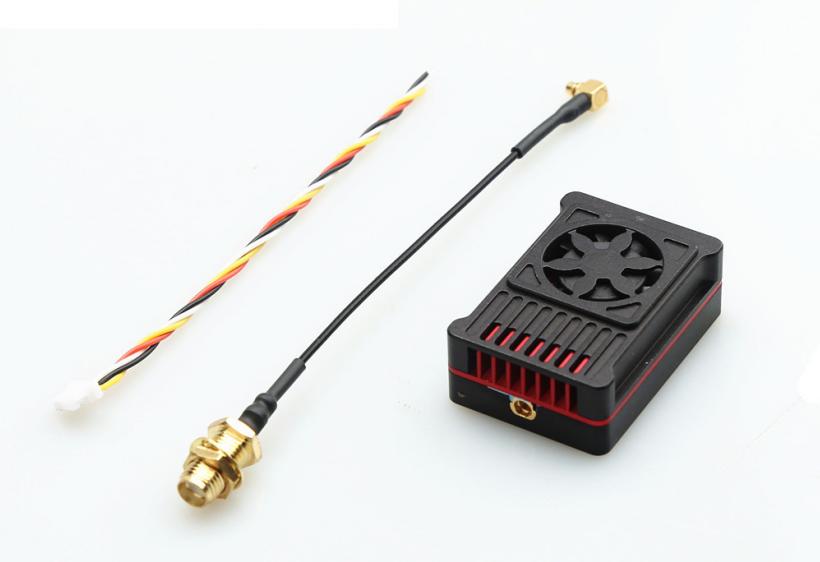

Talon 5.8G High-Power VTX (2.5W / 3W / 4W Options)
Robust Long-Range Video Transmission with Two-Channel Switching
The Talon 5.8G VTX is a high-performance video transmitter designed for long-range FPV and professional UAV operations. With selectable power outputs up to 4W and precision-engineered heat and signal management, this unit provides stable, low-latency video feeds in challenging environments. The 2.5W version offers a reliable balance between power efficiency and extended transmission range.
Key Specifications – 5.8G 2.5W Variant:
-
Input Voltage: DC 7–36V (2S–8S LiPo compatible)
-
Current Draw: 120–860mA @ 12V (adjustable from 25mW to 2500mW)
-
Temperature Range: -10°C to +60°C
-
Video Input Impedance: 75Ω (standard for FPV cameras)
-
Physical Dimensions: 39.5 × 27.5 × 14.5mm
-
Channel Support: Two-channel operation for flexible mission configurations
Product Features:
-
High-Power Output
Supports adjustable output levels up to 2.5W, providing extended range and superior penetration in dense environments.
-
Wide Voltage Compatibility
Accepts a broad range of input voltages (2S to 8S), allowing integration into a variety of FPV platforms without the need for additional regulation.
-

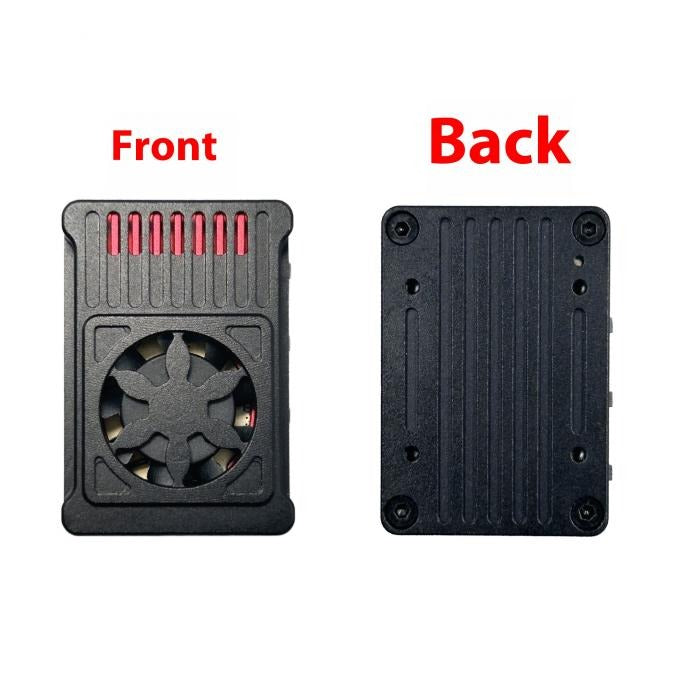

Compact & Durable Form Factor
Precision-milled casing in a compact profile ensures easy installation even in space-constrained airframes.
-
Thermal Regulation
Efficient thermal design ensures stable performance under continuous load, reducing risk of signal degradation during prolonged flights.
Applications:
Suited for long-range FPV systems, fixed-wing UAVs, tactical surveillance drones, and any platform requiring strong video signal performance over extended distances.
Two channels available: 5.8G2.5W
1. Input voltage: DC7-36V (2-8s
Batter)
2. Working current: 120-860mA (12V
/ 25mw-2500mW)
3. Operating temperature: -10 ~ 60℃
4. Video input impedance: 75Ω
5. Size: 39.5x27.5x14.5mm
