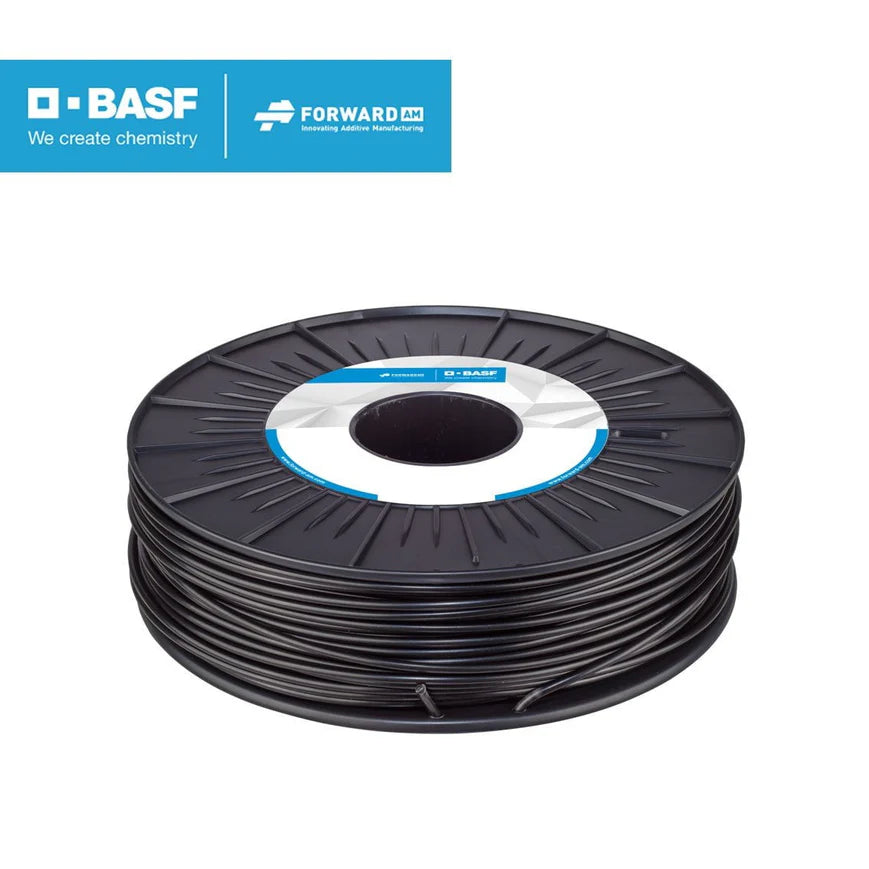

Ultrafuse® PC/ABS FR Black is a V-0 flame retardant blend of Polycarbonate and ABS – two of the most used thermoplastics for engineering & electrical applications. The combination of these two materials results in a premium material with a mix of the excellent mechanical properties of PC and the comparably low printing temperature of ABS. Combined with a halogen-free flame retardant, parts printed with Ultrafuse® PC/ABS FR Black feature great tensile and impact strength, higher thermal resistance than ABS and can fulfil the requirements of the UL94 V-0 standard.
Benefits
- Fulfills flame retardancy according to UL 94 V-0 (@1.5mm & 3.0mm)
-
Outstanding aesthetics
-
Strong layer adhesion
-
High print speeds possible
Applications
- Applications that require flame retardancy like
- Housing for Raspberry pi
- Sockets and plugs

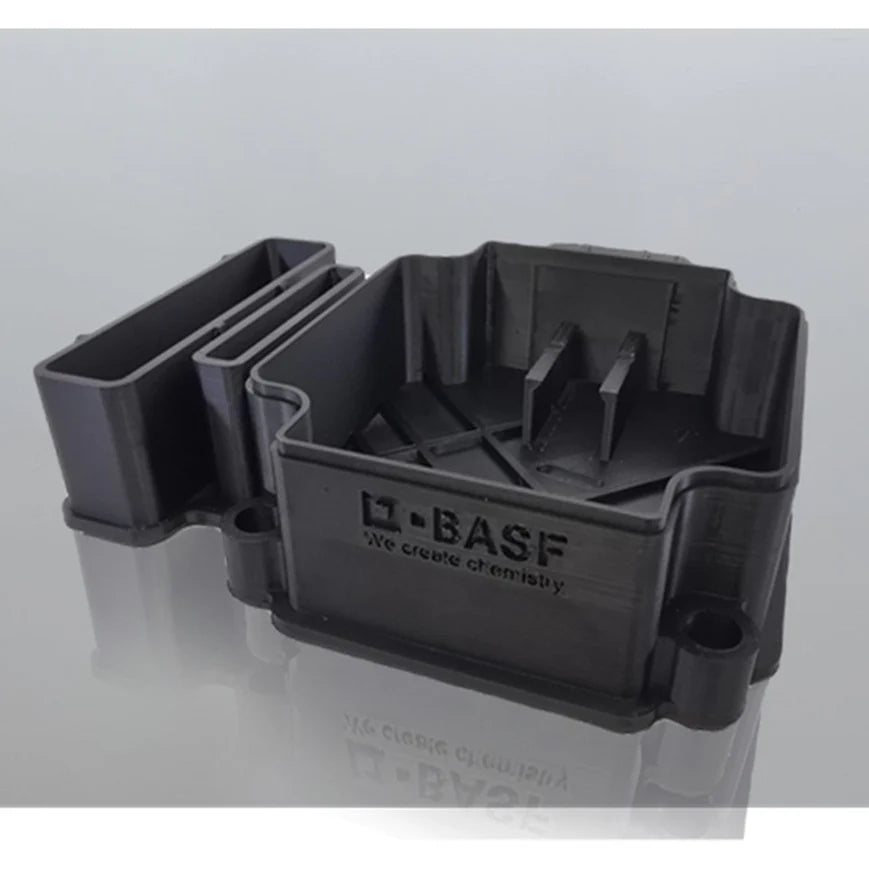

- Housing for handheld devices or power tools
- Automotive components
Material Properties
- Tensile Strength (MPa): 17.3 (ZX), 50.1 (XY)
-
Flexural Modulus (MPa): 1810 (ZX), 2200 (XZ), 2550 (XY)
-
Elongation at Break: 0.8 % (ZX), 10.7 % (XY)
-
Impact Strength Izod notched (kJ/m2): 1.8 (ZX), 30.3 (XZ), 16.8 (XY)
-
Impact Strength Izod unnotched (kJ/m2): 3.0 (ZX), 87.9 (XZ), 57.0 (XY)
-
HDT @ 0.45 MPa: 86 oC
Print Settings
- Nozzle Temperature: 260-280 °C
-
Build Chamber Temperature: Closed chamber, passively heated
-
Bed Temperature: 90 - 110 °C
-
Bed Material: Glass
-
Nozzle Diameter: ≥ 0.4 mm
-
Print Speed: 30 -50 mm / s
