Power Distribution Board (GPD-1000HX)
For HEXA Multicopter
SPECIFICATIONS
- Up to 6 ESC/Motor can be connect to the Board
- 260A (Continuous), 320A (Peak)
- 2 layout with 2oz(70um) Copper Dual PCB.
- Gold plated with black soldermask
- Φ64mm body mounting
- 1 PCB plate for(+), 1 PCB plate for(-)
- Weight : 52g
- Size : 100mm x 100mm

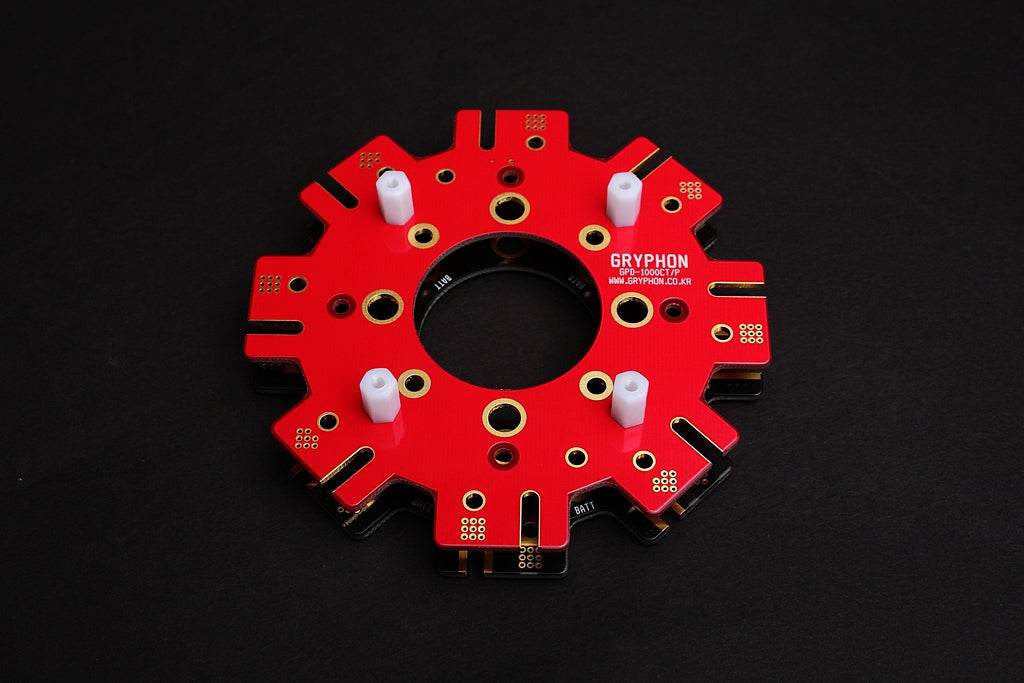

Gryphon Power Distribution Board - Octo (GPD-1000CT)
Power Distribution Board(GPD-1000CT)
For OCTO Multicopter
SPECIFICATIONS
- Up to 8 ESC/Motor can be connect to the Board
- 260A (Continuous), 320A (Peak- 2 layout with 2oz(70um) Copper Dual PCB.
- Gold plated with black soldermask
- Φ64mm body mounting
- 1 PCB plate for(+), 1 PCB plate for(-)
- Weight : 53g
- Size : 100mm x 100mm

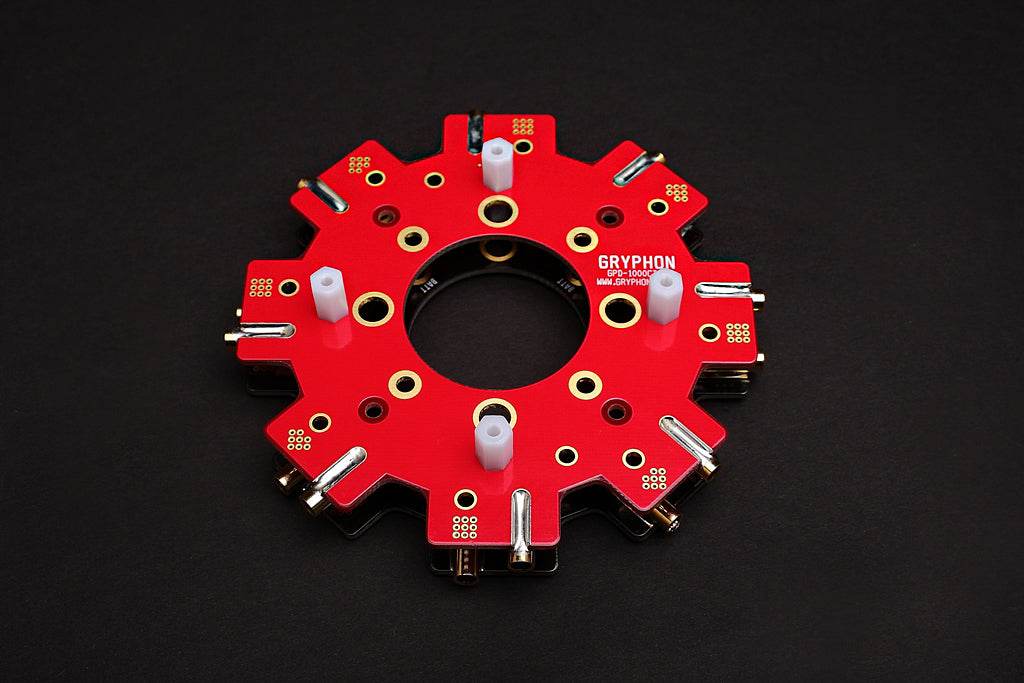

Gryphon Power Distribution Board - Octo with plugs (GPD-1000CTP)
Power Distribution Board(GPD-1000CTP)
For OCTO Multicopter (Equipped with 16 pair of 3.5mm plug)
SPECIFICATIONS
- Up to 8 ESC/Motor can be connect to the Board
- 260A (Continuous), 320A (Peak)
- 2 layout with 2oz(70um) Copper Dual PCB.
- Gold plated with black soldermask
- Φ64mm body mounting
- 1 PCB plate for(+), 1 PCB plate for(-)
- Weight : 85g
- Size : 105mm x 105mm
