Name: HDZero Freestyle V2 VTX
Brand: Rising Sun FPV
SKU: HDZ3131
Price: 99.00 USD
Availability: OutOfStock

Roll over image to zoom in Click on image to zoom

Order in 0H, 44M, 42 Seconds (before 3pm AEST) for same day despatch from our Townsville Store.

Description

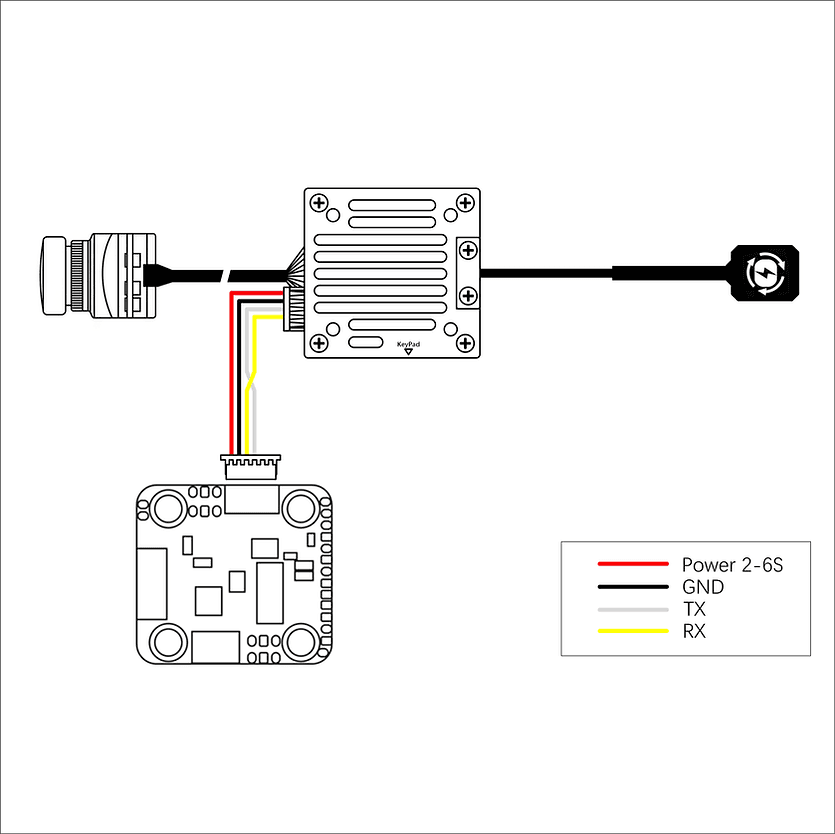

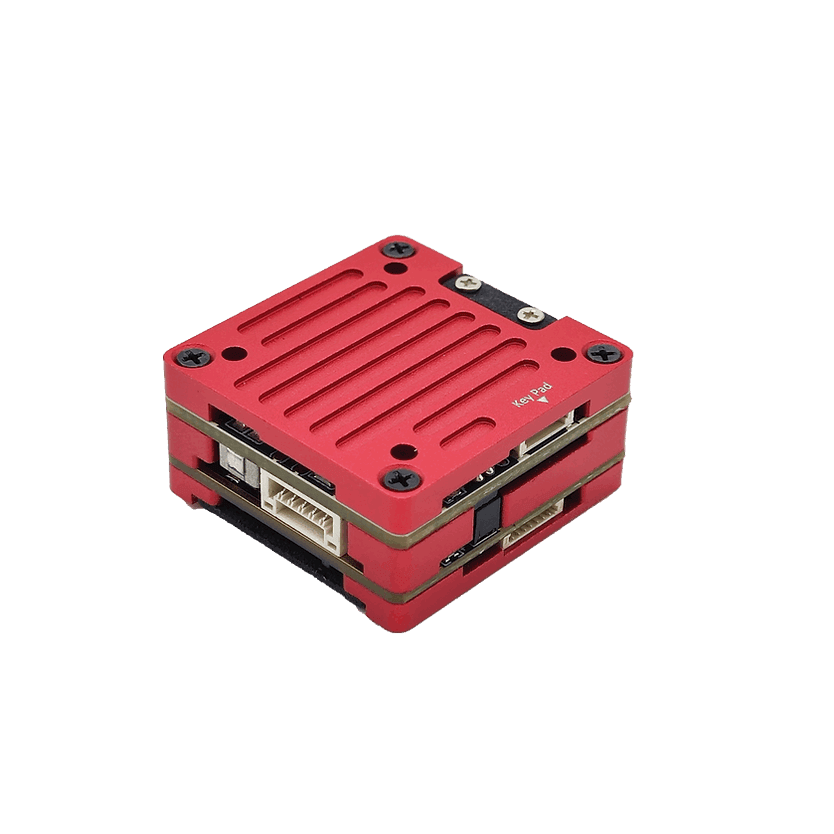

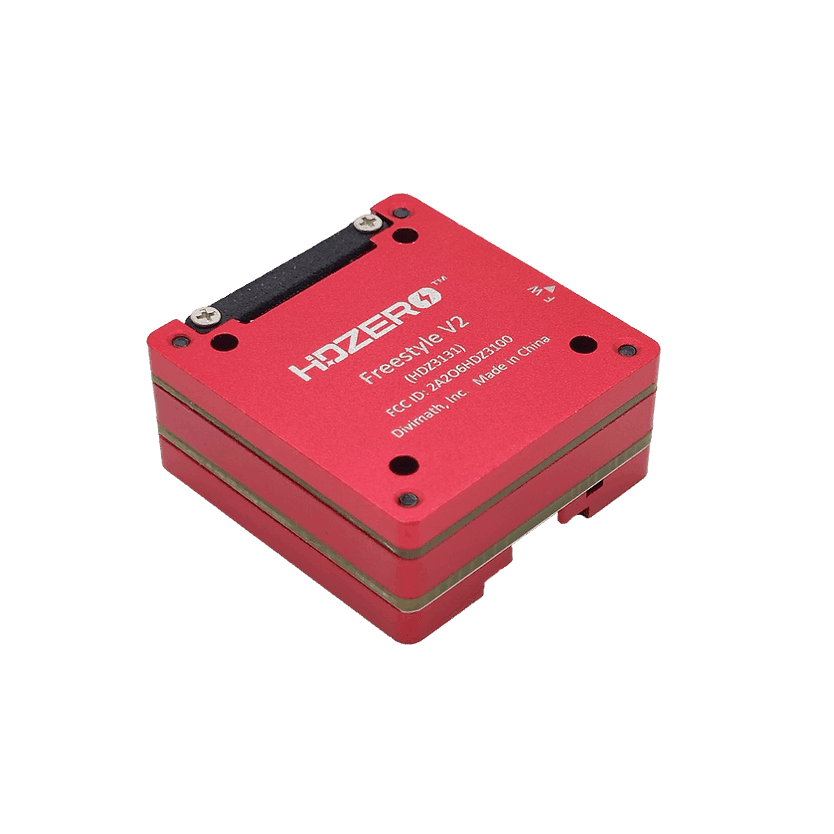

The HDZero Freestyle V2 VTX is our 2nd generation 5.8GHz digital video transmitter which can be fitted into most 3-5-inch HD drones. All sockets are well protected by the CNC case that provides durability, RF shielding and improved signal integrity. A wire harness is included for solderless connection for power and MSP UART port. The antenna and MIPI cable are secured by the included retention bar and screws.

The VTX supports 720p60 ,1080p30, 540p60 and 540p90 video modes.

The VTX is capable of maximum 1W RF output at R1 channel if unlocked with license or approval from the local authorities.

Specifications

Manufacturer	Divimath, Inc
Model	HDZero Freestyle V2 VTX
Weight	22.3 g
Dimensions	29x30x14mm
Operating Frequency	5.725-5.850GHz
Transmitter Power	25mW,200mW
Mounting Pattern	20x20mm M2 holes
Antenna Interface	Secured U.FL
Video In	Secured MIPI
SmartAudio	Yes
MSP Canvas Mode	Yes
Input Power	7-25V
Operating Temperature	32˚F-104 ˚F (0˚-40˚C)
Power Consumption	6-15W

Includes

1x Freestyle V2 VTX
1x Power Cable
1x SA Cable
1x Plastic bar for Mipi Cable with 3 x screws (M1.4 x 2mm).
1x Plastic bar for U.FL with 3 x screws (M1.4 x 8mm)
1x Double Sided Tape (29 x 30 x 1mm)
