Description
DESCRIPTION

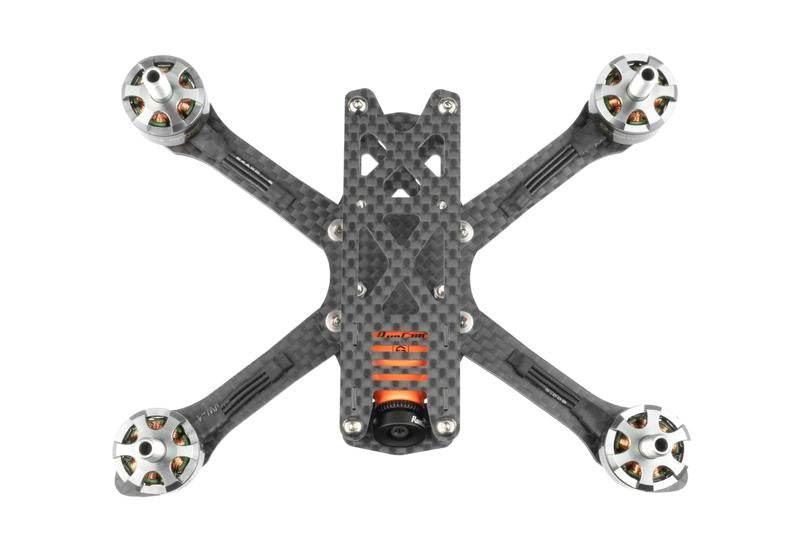

For those that like their micro quads to truly be micro sized, the new 3” and 4” prop Micro Alien FPV Frame brings huge fun in a small package. We scaled down the full-sized Alien to fit modern 20x20 electronics, taking great care to preserve the proportions so that the iconic design is instantly recognizable.
The release of the original Alien design and geometry was a watermark moment for the industry, three years later and now you can just about fit one in your pocket. Fans of the original will love the scale features and attention to detail, from the gumetal M2.5 high tensile hardware down to the custom M2.5 replica cone washers and tiny lipo pad. Of course, no Alien would ever be complete without our classic and perfectly scaled down micro diamond files.
Not only does it look amazing, the performance is just as good. At a compact 135mm motor-to-motor and weighing only 33g dry, the Micro Alien handles how a micro frame really should. The only thing out of proportion here is the amount of fun you can have in something so portable. It really can be taken and flown anywhere. This all makes for a tight build but the rewards for keeping small and light are definitely worth it.
Paired with the Runcam Split Mini 2 and using the correct electronics (see below!) the Micro Alien can pump out flawless HD video without any visible jello. You can build it under 100g without battery on 11xx sized motors, or you can opt for all out power and speed, using the new ImpulseRC 1408 3200kV motors we designed and matched specifically for this frame, and come in healthily under 250g AUW (including battery).
Aliens are well known for their durability and the new Micro variety is no different. Incorporating removable arms that can be replaced with just a single bolt makes maintenance quick and simple, meaning you are always prepared for the worst. On top of that we went all out to make sure we could bring you the frame and spares at a great low price so you can fly without fear.
SPECS
Weight: 33g dry weight
Motor to motor: 135mm diagonal
Motor geometry: Identical to original Alien
Motor bolt pattern: M2 in 12x12mm and 9x9mm
Motor center hole: 4.5mm
Camera Compatibility: Micro cameras and Runcam Split Mini 2
Center to top plate: 20mm
Electronics mounting: M2 20x20mm
Props: HQ 3x4x3V1S or HQ 4x3x3
RECOMMENDED COMPONENTS
Camera: Compatible with all micro sized FPV cameras, fits Runcam Split Mini 2 or Caddx Turtle for HD recording.
FC: For jello free HD video you MUST use an FC with an MPU6000 gyro or use an FC with integrated soft mounts if any other gyro is used.
ESC/FC Stack: Maximum of three layers can fit - usually 4in1 ESC, FC, Runcam Split Mini 2. We include a selection of 32 different sized M2 spacers so you should be able to mount most M2 20x20 stacks, however this is a small quad and the build is tight!
Motors: ImpulseRC 1408 3200kV
Props: HQProp 3x4x3V1S or HQProp 4x3x3
MECHANICAL
Arms: 2.5mm CF - removable and correctly oriented fibers
Top, Main and Center: 1.5mm CF
Camera Sides: 1mm CF
Standoffs: M2.5 x 24mm Aluminium
Bolts: M2.5 gunmetal high tensile steel
Lipo pad: Self-adhesive Velcro
1 x Alien Body Kit
1 x Alien Arm kit (3 inch)
1 x Alien Screw Pack (Gun metal)
