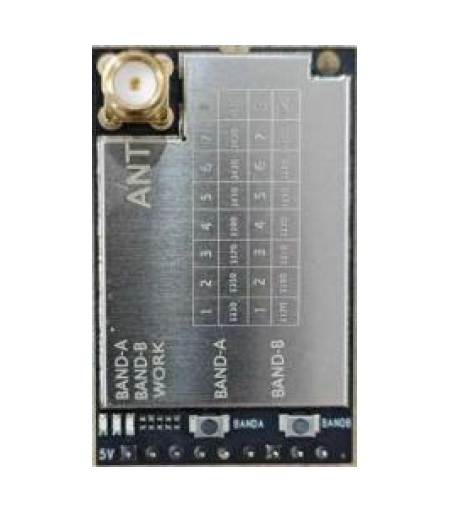

Talon 3.3GHz Analog Video Receiver VRX
1) A Band keying definition
1 BAND-A Press the key once, frequency is 3330MHz, green light blinks once.
2 BAND-A Press the key twice, frequency is 3350Mhz, green light blinks twice.
3 BAND-A Press the key 3 times, frequency is 3370Mhz, green light blinks 3 times.
4 BAND-A Press the key 4 times, frequency is 3390Mhz, green light blinks 4 times.
5 BAND-A Press the key 5 times, frequency is 3410Mhz, green light blinks 5 times.
6 BAND-A Press the key 6 times, frequency is 3430Mhz, green light blinks 6 times.
7 BAND-A Press the key 7 times, frequency is 3450Mhz, green light blinks 7 times.
8 BAND-A Press the key 8 times, frequency is 3470Mhz, green light blinks 8 times.
2) B Band keying definition
1 BAND-B Press the key once, frequency is 3170MHz, blue light blinks once.
2 BAND-B Press the key twice, frequency is 3190Mhz, blue light blinks twice.
3 BAND-B Press the key 3 times, frequency is 3210Mhz, blue light blinks 3 times.
4 BAND-B Press the key 4 times, frequency is 3230Mhz, blue light blinks 4 times.
5 BAND-B Press the key 5 times, frequency is 3250Mhz, blue light blinks 5 times.
6 BAND-B Press the key 6 times, frequency is 3270Mhz, blue light blinks 6 times.
7 BAND-B Press the key 7 times, frequency is 3290Mhz, blue light blinks 7 times.
8 BAND-B Press the key 8 times, frequency is 3310Mhz, blue light blinks 8 times.
