Choose between the Standard 30A Brushless ESC with no BEC or the Enhanced Version with a 5V 2A BEC Module in-built.
Perfect for largers Brushless motors used for WEAPONS in Robot Combat.
Features:
1. Low-power MOS tube design: adopts high-efficiency and low-power MOS tubes, which significantly reduces heat generation and power loss during operation and improves overall efficiency and stability.
2. Support mainstream control signals: compatible with DSHOT and PWM and other mainstream control signal protocols to meet the needs of different devices and scenarios to ensure accurate control.
3. Integrated high-performance BEC module: built-in 5V2A BEC voltage regulator module, and increase the overcurrent copper strip and thermal conductive silicone film, significantly improve the heat dissipation performance and current carrying capacity.
4.AM32 open-source firmware, free adjustment: based on AM32 open-source firmware development, users are free to adjust the parameters to suit individual needs, enhancing flexibility and scalability.
5. Bi-directional operation and smooth switching: supports bi-directional operation mode, smooth switching between forward and reverse; also has adjustable drag brake braking and sine wave start function.
6. Widely applicable to a variety of scenarios: suitable for small drones, crawling robots and climbing vehicles and other diverse application scenarios, providing strong power support for all types of models and equipment.
Parameter:
Model: A01-3012
Firmware: AM32
Master Control: AT32
Operating voltage: 2-4S
Supported signals: PWM/DSHOT/Sine wave, etc.

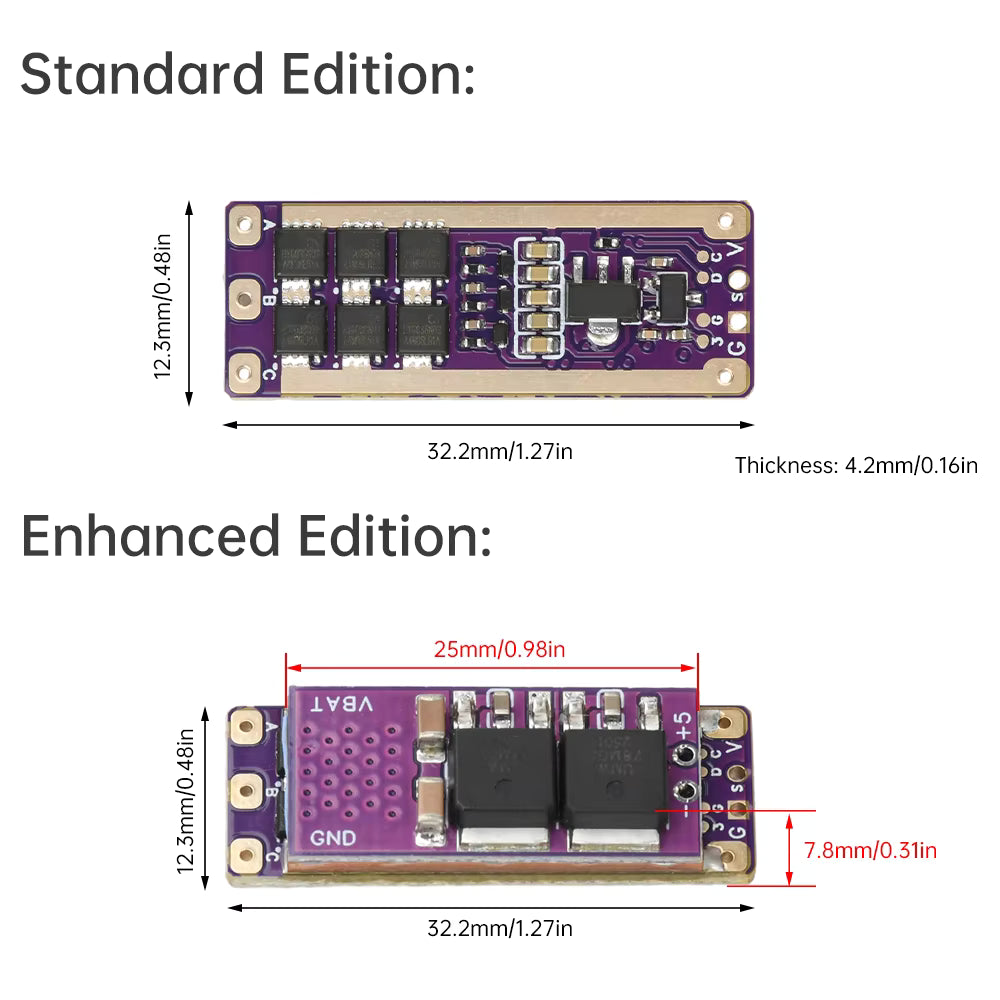

Size: 32x13mm

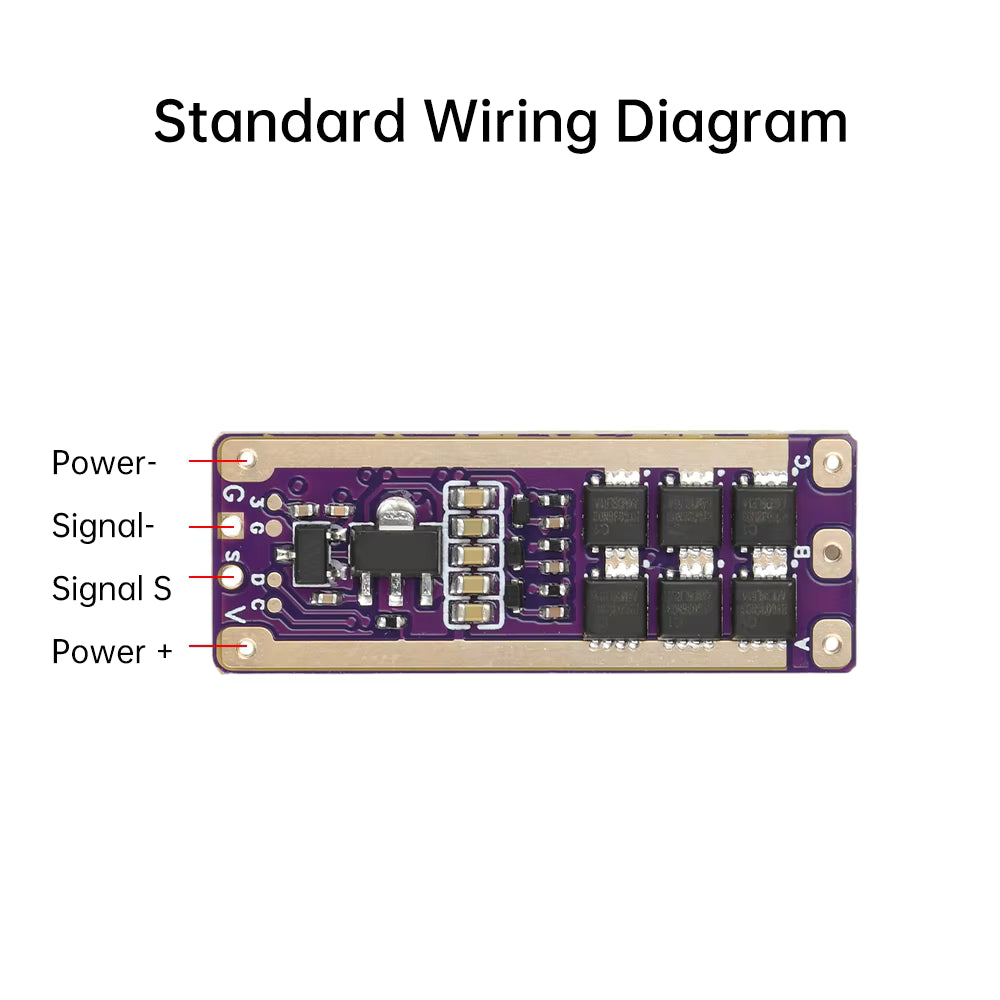

Standard version:
BEC Module: No
Output Current: 30A

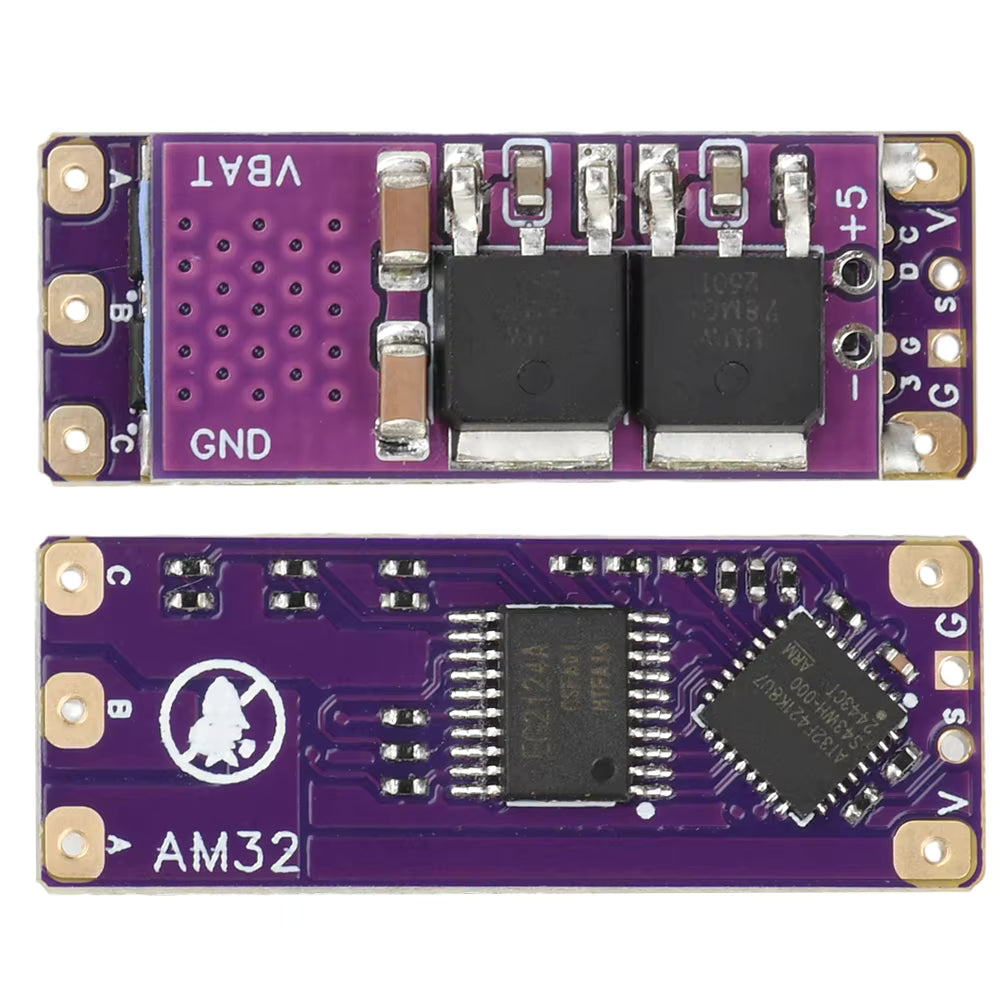

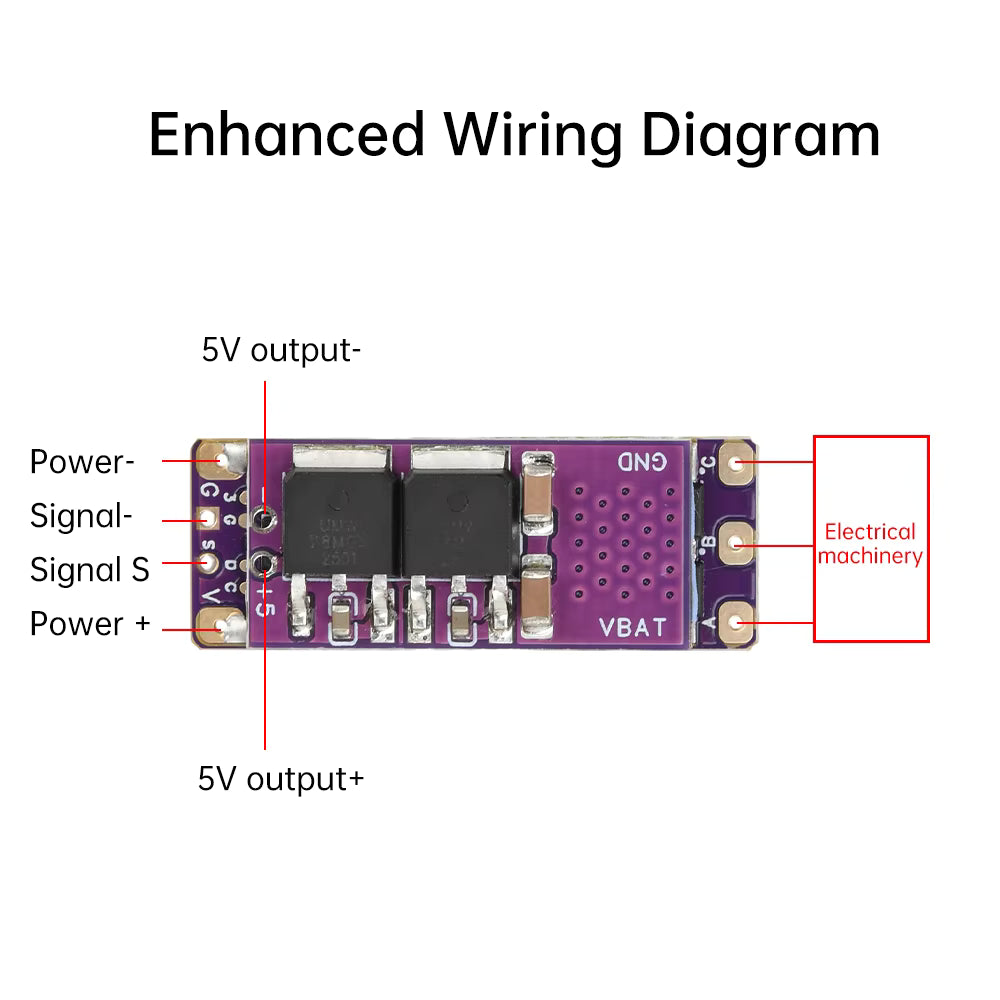

Enhanced version:
BEC Module: With BEC Module, 5V2A
Output Current: 40A
Package include:
Module*1
